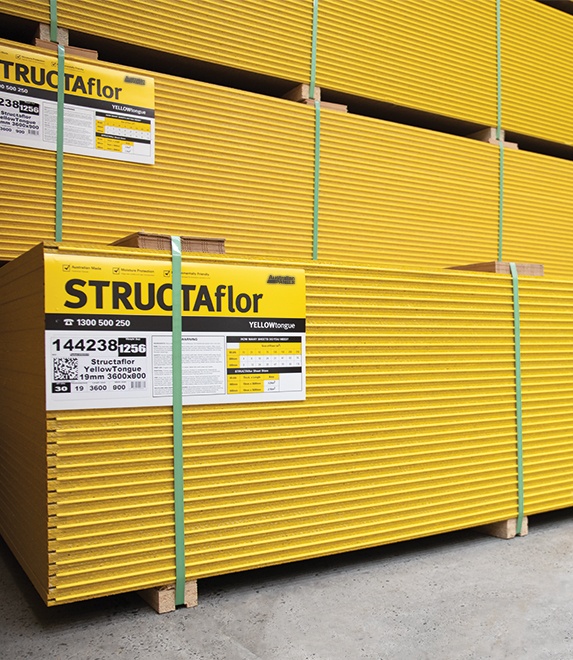

STRUCTAflor is a range of high-performance structural flooring panels available in three distinct product categories: General Purpose, Termite Treated, and Ultimate.

Backed by over five decades of proven performance and rigorous testing, STRUCTAflor is produced to meet AS/NZS 1860.1. Crafted from responsibly sourced Australian plantation pine, each panel undergoes stringent quality checks and is independently certified by the Engineered Wood Products Association of Australasia.

Celebrating five decades of unwavering commitment to quality and sustainability, STRUCTAflor proudly stands as an Australian Made icon in the realm of structural particleboard flooring.

  • Resin Enriched Surface for added weather protection during construction for up to 5 months (7 months for Ultimate)
  • Hardwearing working surface during installation
  • Edge coating to minimise moisture ingress and easy product identification
  • Wax Impregnated throughout for in-built moisture protection
  • Fixing pattern marked for quick and easy installation
  • Grown from managed and renewable Australian plantation pine
STRUCTAflor

General Purpose Termite Treated Ultimate Brochures Technical Data

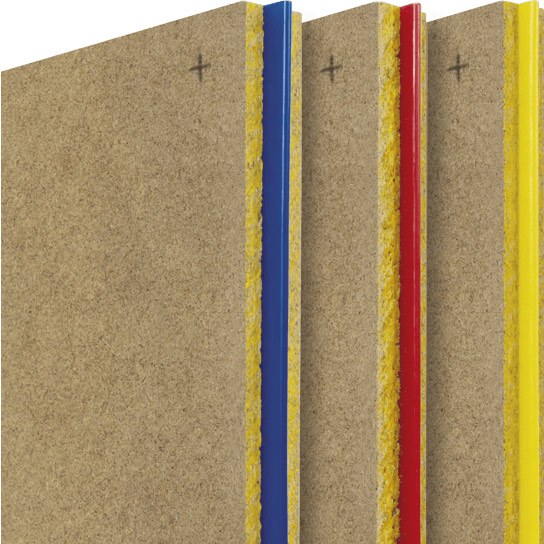

General Purpose

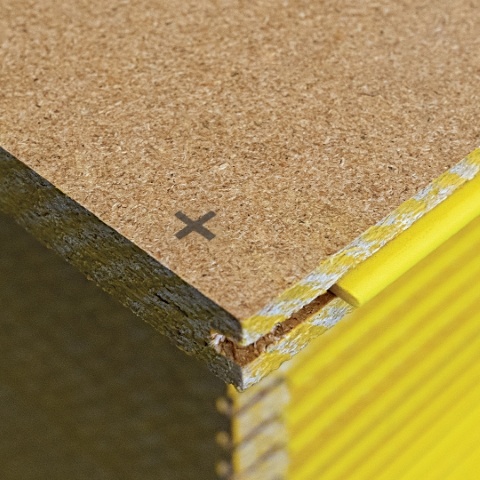

STRUCTAflor General Purpose (GP) is a versatile and reliable flooring solution designed to meet the demands of various building projects, ensuring both performance and ease of use. The upper surface of STRUCTAflor GP is resin-enriched, and all edges of the tongue and grooved sheets are coated, providing additional protection against weather exposure during the construction process.

STRUCTAflor General Purpose is wax-impregnated throughout, offering built-in moisture protection for cut sheets, further enhancing its versatility and durability.

  • Structural dependability: Maintains its structural integrity if exposed to the elements for up to 5 months after installation
  • Wax impregnated: Integrated moisture protection for cut sheets
  • Resin enriched: Added weather protection during construction
  • Easy Installation: Marked fixing pattern for quick and easy installation
  • Versatility: Available in 19mm YELLOWtongue, 22mm REDtongue, and 25mm BLUEtongue variants
STRUCTAflor General Purpose
STRUCTAflor General Purpose

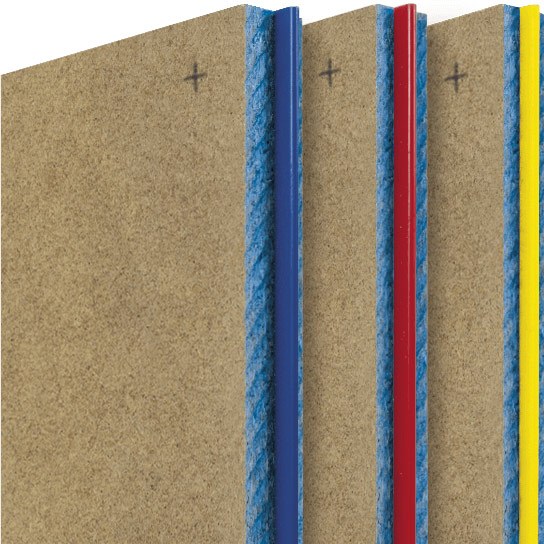

Termite Treated

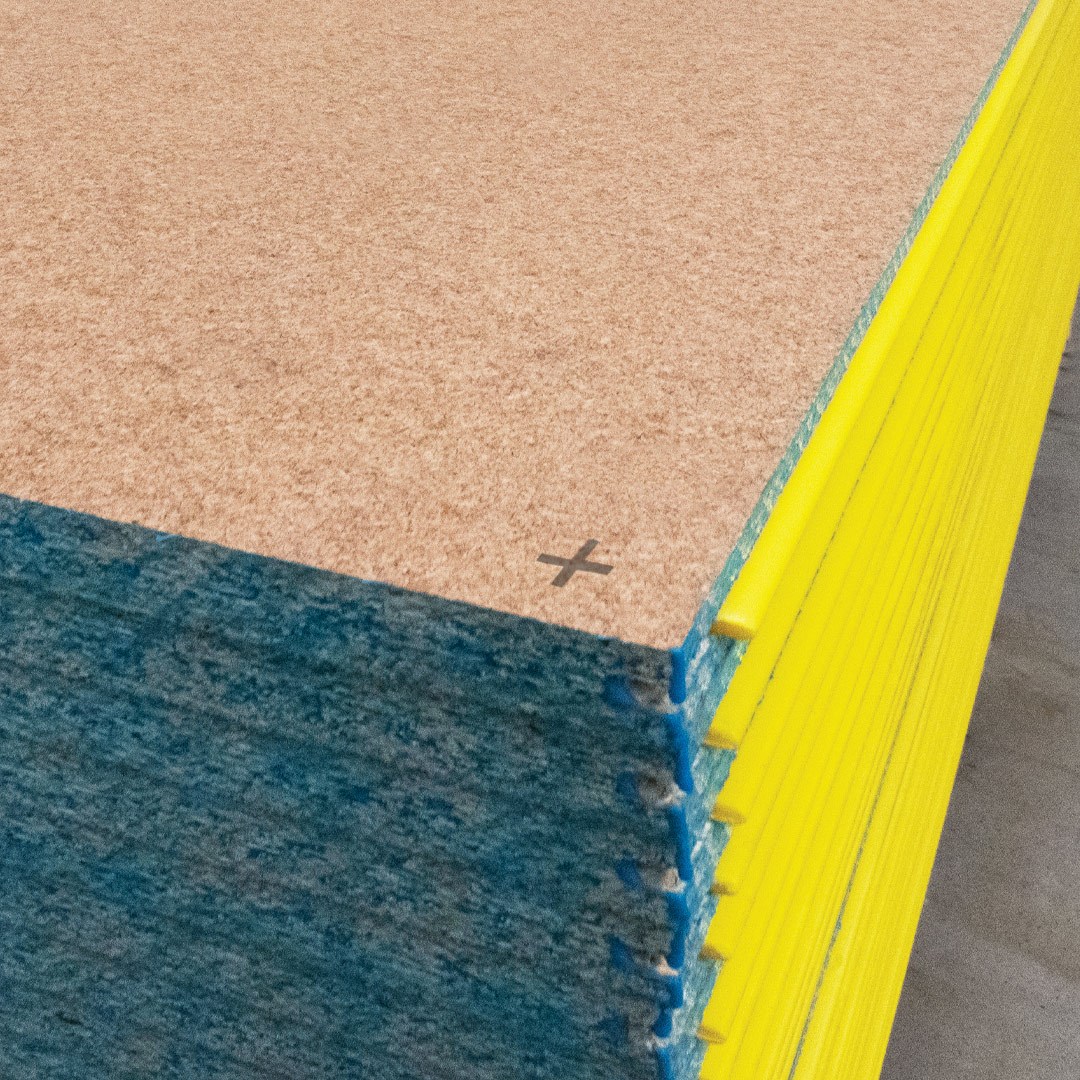

STRUCTAflor Termite Treated is a H2 termite protected structural grade particleboard sheet flooring, providing cost-effective long-term defence against termite damage. This product is specifically engineered for use in residential and commercial construction projects where the risk of termite damage is a concern.

Designed to provide a total flooring concept, STRUCTAflor H2 is particularly suited to platform construction where the floor is laid prior to the erection of walls. They are made from precision milled wood flakes and bonded with moisture resistant synthetic resin. For additional protection during construction and exposure to weather, the upper surface is resin enriched and all edges of the tongue and grooved sheets are coated.

  • 25-year Guarantee: Provides long-term protection against termite attack
  • Complete Termite Solution: When used in conjunction with other termite barriers
  • H2 Level Treatment: Suitable for use throughout Australia
  • Safe and Environmentally Friendly: No harmful chemicals
  • Easy Identification: Distinctive blue edge color
  • Versatility: Available in 19mm YELLOWtongue, 22mm REDtongue, and 25mm BLUEtongue variants
STRUCTAflor Termite Treated
STRUCTAflor Termite Treated

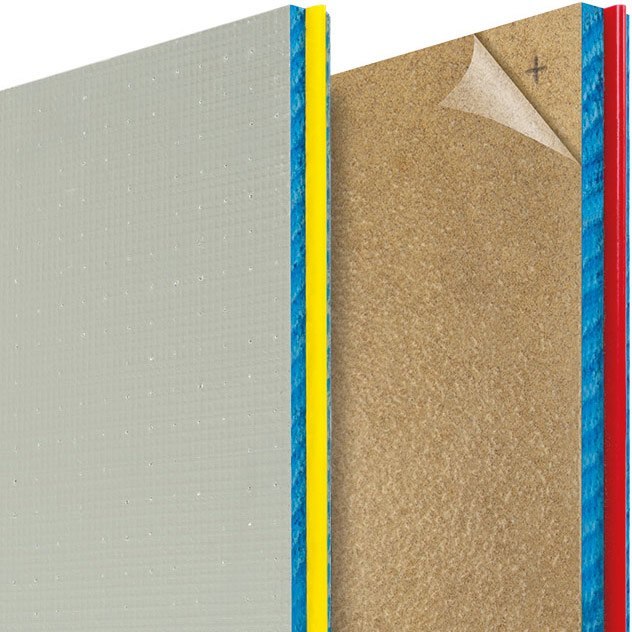

Ultimate (R-flor)

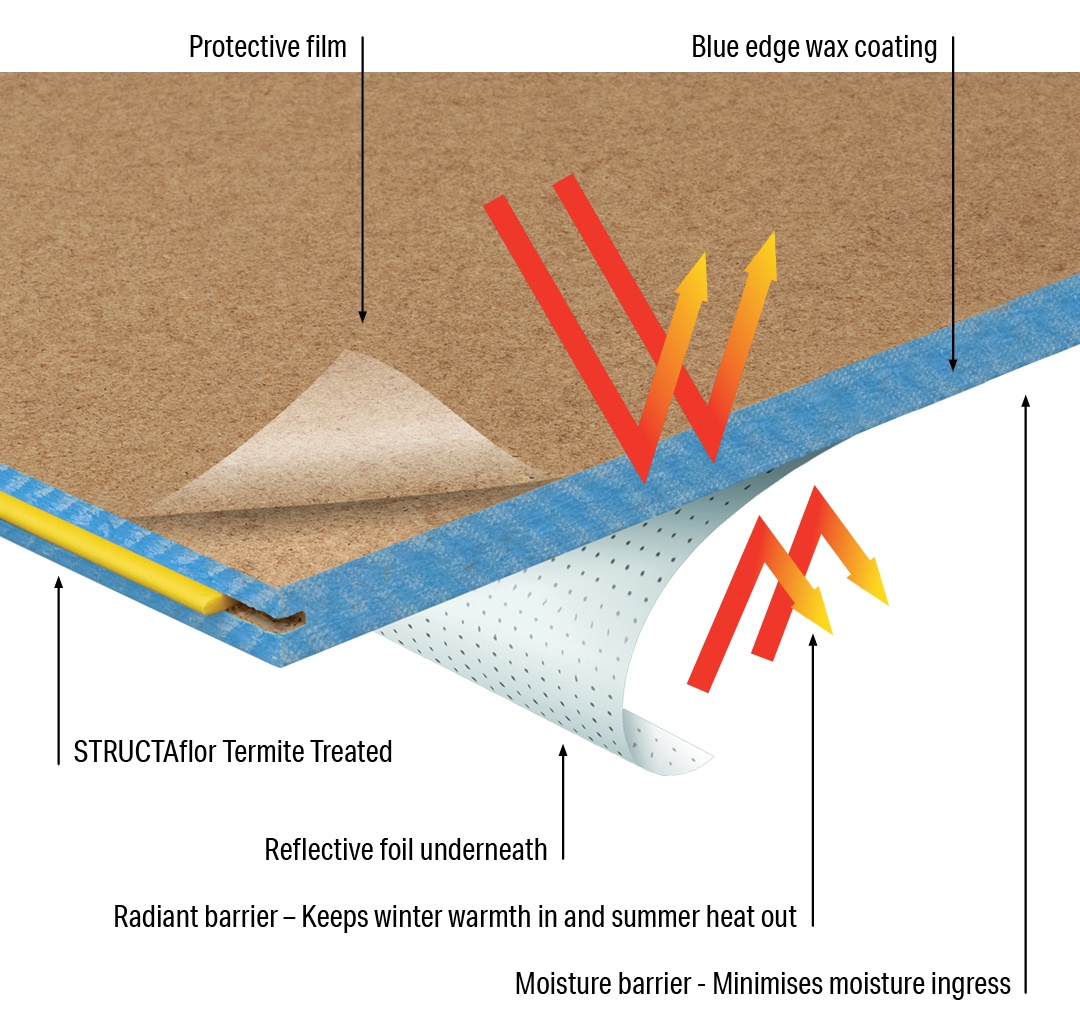

STRUCTAflor Ultimate is an advanced particleboard flooring solution that combines functionality and protection. Featuring a foil laminated underside, STRUCTAflor Ultimate is designed to significantly reduce radiative heat transfer across suspended timber floors. The metallised foil surface, known for its low emittance and high reflectance, significantly reduces the radiative heat transfer across a suspended timber floor.

STRUCTAflor Ultimate reduces moisture uptake, with 80% less moisture penetration through the bottom surface, which leads to better overall performance of the subfloor and floor coverings. This reduction in moisture also means a significantly lower risk of expansion, cupping, mould growth potential and other moisture-related problems when installing timber floor coverings.

  • Increased Bushfire Attack Level rating (BAL29): compared to normal particleboard flooring
  • Increased System R Value (Insulation): compared to normal STRUCTAflor YELLOWtongue flooring
  • Easy Identification: Distinctive metalised foil layer on the underside
  • H2 Level Treatment: Deemed to be a termite resistant building material under the Building Code of Australia and AS 3660.1
  • Versatility: Available in 19mm YELLOWtongue, and 22mm REDtongue
STRUCTAflor Ultimate (R-flor)
STRUCTAflor Ultimate (R-flor)



Ultimate (R-flor) Flooring System R-Value Calculator

Ultimate (R-flor) Flooring System R-Value Calculator


A free, easy to use calculator providing accurate results to determine the correct System R-value for your project.

Click the button below to go to the calculator.




Product Types


Product Thickness
mm		 Sheet Size
mm		 Pack Size Packs/Trailer Weight/ sheet
Kg		 Coverage/sheet
m3		 Domestic Flooring Maximum Joist Spacing
mm
General Purpose 19 - YELLOWtongue 3600 x 800 30 21 19 2.88 450
19 - YELLOWtongue 3600 x 600 30 18 21.4 2.16 450
22 - REDtongue 3600 x 800 30 18 23.8 2.88 600
22 - REDtongue 3600 x 600 30 23 24.4 2.16 600
25 - BLUEtongue 3600 x 600 25 23 24.4 2.16 600
Termite Treated 19 - YELLOWtongue 3600 x 800 30 18 45 2.88 450
22 - REDtongue 3600 x 800 30 16 50 2.88 600
25 - BLUEtongue 3600 x 600 25 24 45.5 2.16 600
Ultimate 19 - YELLOWtongue 3600 x 800 15 36 37 2.88 450
22 - REDtongue 3600 x 800 15 32 43 2.88 600
